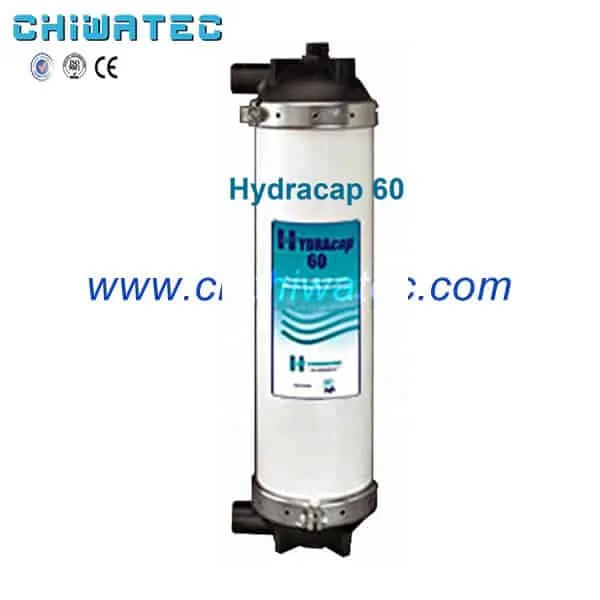

Hydracap 60 Ultrafiltration Membrane

Model: Hydracap60
Filtrate Flow: 12.1 – 29.5 gpm (2.7 – 6.7 m3/h)
Filtrate Turbidity: ≤ 0.07 NTU
Virus removal ≥ 4 log
Bacteria removal ≥ 4 log
Type Configuration: Capillary Ultrafiltration Module
Membrane Polymer: Hydrophilic Polyethersulfone
Nominal Membrane Area: 500ft2 (46m2)
Fiber Dimensions: ID 0.031” (0.8 mm), OD 0.055” (1.4 mm)
Pore size: 0.02 micron

Category:

Description

1. Brief introduction of HYDRAcap 60 UF membrane

HYDRAcap 60 UF membrane can instead conventional pretreatment such as multi media filter, activated carbon filter of ground water and municipal water. HYDRAcap60 is used to treat surface water, ground water, seawater and waste waters. Used as the pre-treatment of RO system.

2. Advantage of HYDRAcap 60 UF membrane

  • Significantly better filter affection. 100% removal of colloidal material.
  • Product quality is stable even during feedwater vibrations
  • Single-step treatment reduces operating costs and increases efficiency
  • Can significantly reduce use of pretreatment chemicals
  • Backwash disposal is less problematic
  • Increased efficiency of RO membrane system design and operation, contributing to reduced capital and operational cost
  • Maximizes RO performance by allowing elements to operate longer with less cleaning
  • Low pressure operation

3. Specifications of HYDRAcap 60 UF membrane

  • Filtrate Flow: 12.1 – 29.5 gpm (2.7 – 6.7 m3/h)
  • Filtrate Turbidity: ≤ 0.07 NTU
  • Virus removal ≥ 4 log
  • Bacteria removal ≥ 4 log
  • Type Configuration: Capillary Ultrafiltration Module
  • Membrane Polymer: Hydrophilic Polyethersulfone
  • Nominal Membrane Area: 500ft2(46m2)
  • Fiber Dimensions: ID 0.031” (0.8 mm), OD 0.055” (1.4 mm)
  • Pore size: 0.02 micron

4. Typical Process Conditions of HYDRAcap 60 UF membrane:

  • Backwash Flux: 100 – 150 gfd (170 – 255 l/m2/h)
  • Backwash Duration: 30 – 60 seconds
  • Backwash Frequency: 20 – 60 minutes
  • Chemical Enhanced Backwash Frequency: 0 – 4 times per day
  • Chemical Enhanced Backwash Duration: 1 – 30 minutes
  • Disinfection Chemicals: NaOCl, H2O2, ClO2or NH2Cl
  • Cleaning Chemicals: NaOH, HCl, H2SO4, or Citric Acid
  • Certifications: NSF61, CDPH, and ETV-NSF Verification

5. Standard Operating Limits of HYDRAcap 60 UF membrane:

  • Typical Filtrate Flux Range: 35 – 85 gfd (59 – 145 l/m2/h)
  • Maximum Applied Feed Pressure: 73 psig (5 bar)
  • Maximum Transmembrane Pressure 20 psig (1.4 bar)
  • Maximum Backwash Transmembrane Pressure: 20 psig (1.4 bar)
  • Instantaneous Chlorine Tolerance: 100 ppm
  • Instantaneous Hydrogen Peroxide Tolerance: 200 ppm
  • Maximum Chlorine Exposure: 200,000 ppm-hrs
  • Maximum Instantaneous Feed Turbidity: 100 NTU
  • Maximum Operating Temperature: 104°F (40°C)
  • pH Operating Range: 4.0 – 10.0
  • Cleaning pH Range: 1.5 – 13.0
  • Operating Mode: Inside to Outside Filtration Direct flow or Crossflow

 6. Application of HYDRAcap 60 UF membrane:

  • The 0.8 mm HYDRAcap is used for surface water applications containing lower turbidities.
  • The 1.2 mm HYDRAcapLD offers a 50% larger capillary diameter for a wider range of high fouling applications.
  • A pretreatment step for desalination, treatment of surface waters and municipal and industrial effluents.

7. Warehouse

8. Package

package

9. Certification:

ISO9001-2019 safety production licenseCE-certification of RO-water Filtration Drinking Plant

10. Comments from customers:

Comments From Customers

11. Package and transportation:

water Filtration Drinking Plant package and transportation

12. Finished projects:
