S2T-19000GPD

Permeate output:3000LPH
Raw water source: municipal water, tap water, well water
Raw water TDS: 2000ppm
Pre-treatment: sand filter, activated carbon filter and softener.
RO unit: sediment filter, high pressure pump, RO membrane, pressure gauge, flow meter and pipelines.
Permeate output quality:TDS≤60-100 ppm, WHO direct drinking standard.
Input temperature:4℃~45℃
Salt rejection: 99%
Recovery rate: 60%
Frame material: stainless steel
Power supply: 380V/220V/110V,50/60Hz, 4.0KW
Certificate: CE certificate, ISO9001

Description

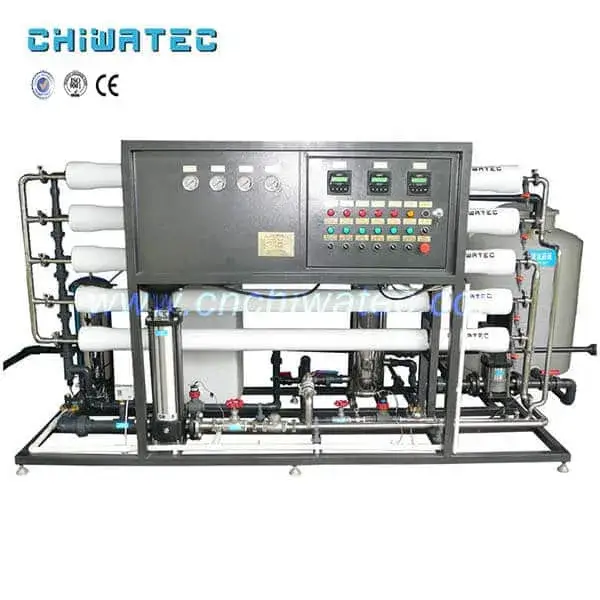

1. Brief introduction of S2T-19000GPD Industrial Water Desalination Plant

S2T-19000GPD Industrial Water Desalination Plant is 3000LPH RO drinking water purification plant industrial school application, food factory, hotel water treatment system for daily life use RO purifier machine. CE ISO Approved RO plant with water softener commercial RO water purification machine. It is equipped with 6 piece of 8040 RO membrane, the model could be BW30-365, ULP21-8040 and CSM-8040. Each are world famous membrane with good quality.
The device is integrated structural design. The hoses and threads are properly sealed. Its small volume is for easy movement, installation and maintenance. The materials  for  the  device  are  corrosion-resistant, reinforced  plastics, nickel-aluminium bronze, to solve the water corrosion problem.
The S2T series are RO unit used for treating water with TDS below 2000ppm, such as tap water and municipal water. This series are standard designing and installation, which include water pump, membrane, sediment filter, etc. The permeated water after treated can drink directly. S2T series have been exported to many countries, such as Bahrain, Middle east and East Asia.

2.Technical route and flow diagram instructions

The technical route is as following.
Raw tank–> sand filter–> carbon filter–> softener –> sediment filter–>high pressure pump–>RO desalination device–>permeate tank

3. Specification for Industrial Water Desalination Plant:

ModelCapacity (LPH)3rd year operating pressure(PSI)No. Of 4”element8″membrane vesselDesigned recoveryDriving motor 50Hz/380V
S2T-19000GPD30002001280″*660%4.0KW

4. Weights & dimensions:

ModelApproximate unit dimensionApproximate shipping dimension
L(mm)W(mm)H(mm)Weight(kg)L(mm)W(mm)H(mm)Weight(kg)
S2T-19000GPD2600700130026028008001400280

5. Components

Main Components

  • T.F.C.R.O membrane with 99% average salt rejection
  • FRP pressure vessel
  • SS centrifugal pump
  • Coated carbon steel frame
  • Sediment filter
  • Product water flow meter
  • Concentrate regulate valve
  • Pressure gauge
  • Pump exit regulate valve
  • 380V/50HZ power supply

Optional Components

  • 304SS pressure vessel
  • CIP system
  • Concentrate recycle
  • Chemical dosing system
  • 220V/60HZ power supply

6. Our Certification



7. Comments From Customers

Comments From Customers

8. Package and Transportation

9. Finished Project
