Product name:CSM RE8040-SHF RO Membrane
Model:RE8040-SHF
Salt rejection:99.7%
Effective membrane area:34.4m²
Test pressure: 15.5bar
Capacity: 9000GPD
Membrane type: T.F.C
PH range for continue working: 2-11
Brand Name: CSM
Condition: New
Size: 201*201*1016mm
Weight:13KG
Material: CARTON
After-sales Service Provided:Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

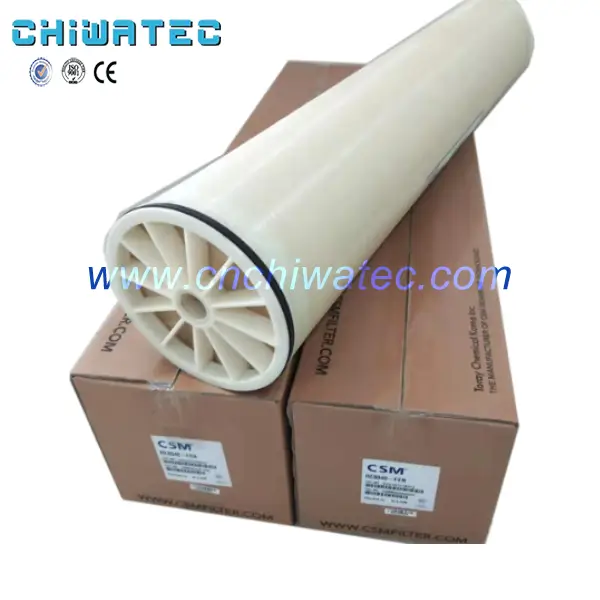

RE8040-SHF CSM RO Membrane
Description
1. Brief introduction of RE8040-SHF CSM RO Membrane
High productivity RE8040-SHF CSM RO Membrane for seawater and high salinity well water
2. Specification of RE8040-SHF RO Membrane
 | ||||||||
| Model | Size (Diameter) | Active area | Permeate flow rate | Stabilized salt rejection | Data sheets | |||
| mm | inch | ft² | m² | gpd | m³/d | % | ||
| RE4040-BE | 100 | 4 | 85 | 7.9 | 2400 | 9.1 | 99.7 |  |
| RE4040-BLN | 100 | 4 | 85 | 7.9 | 2600 | 9.8 | 99.2 | |
| RE4040-FEN | 100 | 4 | 85 | 7.9 | 2400 | 9.1 | 99.7 | |
| RE8040-BE | 200 | 8 | 400 | 37.2 | 10500 | 39.7 | 99.7 | |
| RE8040-BE440 | 200 | 8 | 440 | 40.9 | 12000 | 45.4 | 99.7 | |
| RE8040-BLN | 200 | 8 | 400 | 37.2 | 12000 | 45.4 | 99.2 | |
| RE8040-FEN | 200 | 8 | 400 | 37.2 | 10500 | 39.7 | 99.7 | |
| RE8040-FL440 | 200 | 8 | 440 | 40.9 | 12100 | 45.7 | 99 | |
| RE8040-SHA400 | 200 | 8 | 400 | 37.2 | 7500 | 28.4 | 99.75 | |
| RE8040-SHF | 200 | 8 | 370 | 34.4 | 9000 | 34.1 | 99.7 | |
3. Dimension for RE8040-SHF RO Membrane
4. RO membrane principal and related drawings
5. Package
6. Certification:
7. Comments from customers:
