RO Membrane Fouling Types: Complete Guide to Reverse Osmosis Membrane Contaminants and Composition 2026

Wondering what types of fouling affect your RO membranes? Understanding the composition of reverse osmosis membrane fouling is critical for maintaining system performance, extending membrane life, and reducing operating costs. This comprehensive guide covers the eight primary categories of RO membrane fouling contaminants — from calcium carbonate scale to microbial deposition — with detailed information on identification, prevention, and cleaning strategies. CHIWATEC has been engineering industrial RO membrane systems for over a decade, providing tailored solutions for complex feed water conditions.

*Last Updated: March 2026 | Industry-Verified Technical Data*

Why This Guide Matters

The global reverse osmosis membrane market was valued at approximately USD 6.8 billion in 2025 and is projected to reach USD 14.2 billion by 2034, growing at a CAGR of 8.5% (Grand View Research, 2025). RO membrane fouling is the single largest operational challenge in RO systems, accounting for 30-60% of total operating costs in industrial installations. Studies indicate that improper fouling management reduces membrane service life from the expected 5-7 years to as little as 1-3 years in severe cases, increasing replacement costs by 200-400%. Identifying the specific fouling composition is the first and most critical step in implementing an effective cleaning and prevention strategy.

Key Industry Trends (2026 Update)

  • Real-time fouling monitoring: Advanced sensors and AI-driven analytics now enable continuous monitoring of membrane fouling indices (SDI, LSI), allowing operators to detect scaling and biofouling onset hours to days earlier than traditional periodic testing.
  • Anti-fouling membrane technology: Next-generation RO membranes with hydrophilic surface modifications and anti-adhesive coatings have reduced biofouling rates by 40-60% in municipal water reuse applications.
  • PFAS-focused membrane systems: New EPA Maximum Contaminant Levels for PFAS (4 ppt for PFOA and PFOS, effective 2024-2029) are driving adoption of high-rejection RO membranes and specialized cleaning protocols for emerging contaminant fouling.
  • Green cleaning alternatives: Enzyme-based and biodegradable membrane cleaning agents are gaining regulatory preference over traditional harsh chemicals (caustic, acid, biocides), particularly in food and pharmaceutical applications.

1. Calcium Carbonate Scale (CaCO3): Causes, Detection, and Removal

Formation Mechanism

Calcium carbonate scale is the most common type of RO membrane fouling encountered in RO membrane systems. It forms when the scale inhibitor/dispersant addition system fails or when the acid addition pH adjustment system malfunctions, causing the feedwater pH to increase. As water passes through the RO membrane, the concentration of calcium and bicarbonate ions in the concentrate stream increases beyond the solubility limit of CaCO3, leading to precipitation directly on the membrane surface.

Detection and Early Warning

Installing a transparent sight tube on the concentrate pipeline is essential for early detection of CaCO3 scale. Visible white crystalline deposits in the sight tube are the first warning sign. The Langelier Saturation Index (LSI) should be maintained below 0 for RO feedwater to prevent CaCO3 precipitation. For systems without real-time LSI monitoring, weekly measurements of concentrate stream pH and alkalinity are recommended.

Cleaning Methods

  • Early-stage scale: Lower feedwater pH to 3.0-5.0 and circulate for 1-2 hours. This dissolves CaCO3 by converting it to soluble calcium bicarbonate.
  • Established scale: Use a low-pH citric acid solution (2% concentration, pH 2.5-3.0) for recirculation cleaning. Citric acid is preferred for its chelating properties, which enhance calcium removal.
  • Prevention: Maintain scale inhibitor dosage at 2-5 ppm (depending on feedwater chemistry), monitor LSI weekly, and ensure acid injection systems are calibrated quarterly.

2. Calcium Sulfate, Barium Sulfate, and Strontium Sulfate Scale

Characteristics and Risk Factors

Sulfate scales are significantly harder than calcium carbonate scale and far more difficult to remove. They form when the scale inhibitor/dispersant system fails or when sulfuric acid is used for pH adjustment, introducing additional sulfate ions into the feedwater. Barium sulfate (BaSO4) and strontium sulfate (SrSO4) are particularly problematic because they are nearly insoluble in all standard cleaning solutions — their solubility products (Ksp) are 1.1 x 10^-10 and 3.2 x 10^-7 respectively, compared to 3.4 x 10^-9 for CaSO4.

Critical Detection Requirements

Sulfate scales require immediate detection — even small crystals deposited on the membrane surface can cause permanent damage. Unlike CaCO3 scale, sulfate crystals can physically puncture or abrade the polyamide membrane layer during cleaning attempts. Key monitoring parameters include:

  • Concentrate stream sulfate concentration — should remain below 150% of the calculated saturation level
  • Barium and strontium levels in feedwater — any detectable barium (>0.05 ppm) requires aggressive scale inhibitor dosing
  • Scale inhibitor residual testing — verify inhibitor is present in the concentrate stream

Cleaning Limitations

Due to their extreme insolubility, barium and strontium sulfate scales cannot be removed by conventional chemical cleaning. Prevention through proper scale inhibitor selection and dosing is the only reliable strategy. If precipitated, the membrane elements may need to be replaced. For calcium sulfate scale, EDTA-based chelating solutions at high pH (11-12) and elevated temperature (35-40 degrees C) may achieve partial removal with extended recirculation time (4-8 hours).

3. Calcium Phosphate Scale in RO Membrane Systems

Prevalence in Wastewater Applications

Calcium phosphate RO membrane fouling is most commonly encountered in municipal wastewater reclamation and industrial effluent treatment where phosphorus content is elevated. When feedwater phosphate concentrations reach or exceed 5 ppm, the risk of calcium phosphate precipitation in the concentrate stream increases significantly. The standard RO design software from major manufacturers (including major manufacturers) does not currently include calcium phosphate solubility calculations in their projection programs, meaning operators must manually assess this risk.

Identification and Removal

Calcium phosphate scale typically appears as a white to light-gray deposit on the membrane surface. Unlike CaCO3 scale, it does not effervesce when exposed to acid. However, it can be effectively removed with acidic cleaning solutions (pH 2.5-3.0 using hydrochloric or citric acid). For persistent phosphate scale, a dual-step clean with acid followed by high-pH chelating agent (EDTA at pH 11-12) has shown superior results in case studies.

Prevention Strategy

When feedwater phosphate exceeds 5 ppm, operators should: (1) reduce system recovery to lower concentrate phosphate concentration, (2) increase scale inhibitor dosage with a formulation specifically designed for phosphate scale inhibition, and (3) consider chemical precipitation (lime softening) as a pretreatment step to remove phosphate before the RO system.

4. Metal Oxide and Metal Hydroxide Fouling

Common Contaminants and Sources

Metal oxide and hydroxide fouling typically involves iron (Fe), zinc (Zn), manganese (Mn), copper (Cu), and aluminum (Al) compounds. These contaminants originate from multiple sources:

  • Corrosion products from equipment piping, storage tanks, and pressure vessels (primarily iron oxides)
  • Oxidation reactions where dissolved metal ions (Fe2+, Mn2+) are oxidized by chlorine, ozone, potassium permanganate, or atmospheric oxygen to form insoluble precipitates
  • Coagulant carryover from pretreatment systems using iron-based (FeCl3, Fe2(SO4)3) or aluminum-based (alum, PAC) coagulants

Identification

Metal oxide fouling is often visually identifiable: red-brown deposits indicate iron oxides, black deposits suggest manganese dioxide or copper oxide, and white gelatinous deposits indicate aluminum hydroxide. The normalized pressure drop across the membrane array typically increases by 20-40% before significant flux decline is observed.

Cleaning Protocols

Most metal oxide scales respond to acidic cleaning at pH 2.5-3.0 using citric acid (preferred for its chelating ability), hydrochloric acid, or specialized metal-chelating formulations. For severe iron fouling, sodium hydrosulfite (2% solution) at pH 5-6 has shown excellent results by reducing Fe3+ to soluble Fe2+. Prevention requires optimizing pretreatment coagulant dosing and installing post-coagulation filtration (multi-media or cartridge filters) to capture any metal hydroxide floc carryover.

5. Polymeric Silica and Silicate Fouling

The Most Challenging Fouling Type

Silica fouling is arguably the most difficult RO membrane foulant to manage. It exists in two forms: (1) reactive silica (soluble, monomeric SiO2) that can polymerize on the membrane surface when concentration exceeds approximately 150-200 ppm at pH 7, and (2) colloidal silica (particulate, often associated with metal hydroxides and organic matter). The polymerization mechanism is autocatalytic — once initiated, the reaction accelerates rapidly, forming a dense, glass-like layer that is extremely difficult to remove.

Key Risk Factors

  • Feedwater silica concentration above 25 ppm (as SiO2) requires special attention
  • System recovery rates above 75-80% in silica-bearing waters significantly increase concentrate silica concentrations
  • Iron and aluminum hydroxides catalyze silica polymerization on the membrane surface
  • Low temperature (below 15 degrees C) reduces silica solubility, increasing scaling risk

Cleaning Limitations

Traditional cleaning methods are largely ineffective against polymeric silica scale. Conventional acid or caustic cleaning achieves only 10-30% removal. More aggressive approaches include:

  • Ammonium bifluoride (ABF) — has demonstrated success in some applications but is highly toxic, corrosive, and damaging to membranes if used improperly
  • High-temperature caustic cleaning (40-45 degrees C, pH 12) with extended recirculation (4-8 hours) may achieve partial removal
  • Prevention through warm lime softening pretreatment, enhanced recovery management, and the use of silica-specific antiscalants

If you are dealing with challenging silica fouling conditions, CHIWATEC offers customized pretreatment solutions and membrane system designs optimized for high-silica feedwaters.

6. Colloidal Fouling: Clay, Silt, and Fine Particulate Matter

Nature of Colloidal Contamination

Colloids are finely dispersed particles (typically 0.01-1 micron in diameter) that remain suspended in water due to electrostatic repulsion and Brownian motion — they do not settle by gravity. Colloidal RO membrane fouling typically involves a mixture of inorganic and organic components, commonly including clay minerals, fine silica, iron and aluminum hydroxides, and organic macromolecules. The Silt Density Index (SDI) is the standard measure of colloidal fouling potential; RO feedwater should maintain an SDI below 3.0, and ideally below 2.0.

Detection and Impact

  • Pressure drop increase: Colloidal fouling typically causes a gradual, steady increase in differential pressure across the membrane array
  • Flux decline: Unlike scaling (which causes rapid flux loss), colloidal fouling progresses more slowly but steadily over weeks to months
  • Concentrate turbidity: A sharp increase in concentrate turbidity may indicate colloid breakthrough from pretreatment

Cleaning and Prevention

Colloidal fouling responds best to high-pH anionic surfactant cleaning (pH 11-12) that disperses and suspends colloidal particles. The cleaning protocol should include a prolonged soak phase (2-4 hours) to allow the cleaning solution to penetrate the colloidal layer on the membrane surface. Prevention relies on robust pretreatment: coagulation-flocculation followed by multi-media filtration, microfiltration, or ultrafiltration. For well water applications, greensand filtration or direct microfiltration may be adequate depending on colloid concentration and composition.

7. Dissolved Natural Organic Matter (NOM) Fouling

Organic Fouling Mechanisms

Dissolved Natural Organic Matter (NOM) is one of the most complex and challenging fouling categories in RO membrane operation. NOM originates from the decomposition of organic matter in surface waters and shallow wells, and its chemical composition varies significantly by source. The primary organic components are humic acids (high molecular weight, 2,000-100,000 Da) and fulvic acids (lower molecular weight, 500-2,000 Da).

Fouling Progression

Unlike mineral scaling, NOM fouling follows a distinct two-stage mechanism:

  1. Adsorption stage: NOM molecules adsorb directly onto the membrane surface through hydrophobic interactions and hydrogen bonding. This stage is rapid (hours to days) and creates a conditioning layer that alters membrane surface properties.
  2. Gel layer formation: The adsorbed NOM layer attracts additional organic molecules, forming a compressible gel or cake layer that severely restricts water permeation. Once the gel layer reaches a critical thickness, flux decline becomes exponential.

Management Strategies

NOM fouling is best managed through a combination of pretreatment and optimized cleaning:

  • Coagulation and flocculation: Removes 40-60% of NOM before the RO system, particularly high-molecular-weight humic acids
  • Ultrafiltration (UF) pretreatment: UF membranes with a molecular weight cutoff of 10,000-50,000 Da can remove >90% of NOM
  • Cleaning: High-pH cleaning (pH 11-12) with surfactants is most effective for NOM removal. Sodium hydroxide combined with sodium dodecyl sulfate (SDS) is a proven formulation. A 30-60 minute recirculation followed by 2-4 hour soak is typically required.
  • Granular Activated Carbon (GAC): GAC pretreatment can remove 60-80% of NOM but requires regular replacement (every 6-12 months) to maintain effectiveness.

8. Microbial Deposition: Biofouling of RO Membranes

Biofouling Causes and Consequences

Microbial deposition, or biofouling, is caused by the accumulation and growth of bacteria, fungi, molds, and other microorganisms on the membrane surface. The microorganisms produce extracellular polymeric substances (EPS) — a sticky, protective matrix of polysaccharides, proteins, and nucleic acids — that anchors cells to the membrane and shields them from disinfectants. Biofouling is widely considered the most difficult fouling type to control because:

  • EPS layers can reach thicknesses of 50-100 microns within days under favorable conditions
  • The EPS matrix acts as a diffusion barrier, protecting embedded bacteria from shear forces and chemical attack
  • Once the feedwater channel is fully blocked, cleaning solutions cannot reach large areas of the membrane surface

Comprehensive Management Approach

Effective biofouling control requires a system-wide strategy that extends beyond the RO membranes themselves:

  • Pretreatment disinfection: Chlorination/dechlorination, chloramines, UV, or ozone treatment of feedwater
  • Periodic sanitation: Sanitize all pretreatment equipment, piping, and membrane pressure vessels during each cleaning cycle to eliminate biofilm seeding points
  • Approved biocides: Use only membrane-compatible biocides (e.g., DBNPA, isothiazolone, or glutaraldehyde) approved by the membrane manufacturer. Apply oxidative biocides with extreme caution — consult the manufacturer for chlorine/tolerance specifications.
  • Cleaning frequency: Biofouled membranes require more frequent cleaning (every 1-3 months vs. every 6-12 months for scaling). Alkaline cleaning with surfactants at pH 11-12, followed by acid cleaning, is the standard two-step protocol.

For expert guidance on membrane selection, fouling diagnosis, and customized cleaning protocols, CHIWATEC provides comprehensive support for industrial and commercial RO systems worldwide.

Conclusion

Identifying the specific composition of RO membrane fouling is the cornerstone of effective RO membrane fouling management. Each fouling type — from calcium carbonate scale to microbial biofouling — requires a distinct approach to detection, cleaning, and prevention. By implementing the strategies outlined in this guide and maintaining routine monitoring of key parameters (SDI, LSI, normalized pressure drop, and flux), operators can extend membrane service life from 3-5 years to 7-10 years, reduce cleaning chemical costs by 30-50%, and maintain consistent water quality and production rates. As anti-fouling membrane technology and real-time monitoring systems continue to advance, staying current with best practices for each fouling category will remain essential for cost-effective RO system operation.

Contact CHIWATEC today at [email protected] or [email protected] (WhatsApp: +86 18292684865) for professional guidance on RO membrane selection, fouling diagnosis, and optimized cleaning protocols tailored to your specific feedwater conditions.

Frequently Asked Questions

Q1: How often should RO membranes be cleaned for fouling?

The standard recommendation is to clean RO membranes every 3-6 months for industrial systems and every 6-12 months for commercial systems under normal operating conditions. However, cleaning should be triggered by performance indicators rather than calendar intervals: clean when normalized permeate flow drops by 10-15%, normalized salt passage increases by 10-15%, or normalized differential pressure increases by 15-20% from baseline values established after the previous clean.

Q2: Can different types of RO membrane fouling occur simultaneously?

Yes, mixed fouling is the rule rather than the exception in most real-world RO systems. Common combinations include: (1) colloidal fouling with organic NOM adsorption (colloids carry adsorbed organic matter), (2) biofouling with metal hydroxide precipitation (microbial activity can create local pH gradients that trigger metal precipitation), and (3) calcium carbonate scaling on top of an existing biofilm layer. Mixed fouling requires multi-step cleaning protocols — typically alkaline cleaning first (to remove organic/biofouling), followed by acid cleaning (to remove mineral scale).

Q3: What is the most common cause of RO membrane fouling?

Globally, the most common cause of RO membrane fouling varies by application: for municipal water treatment, biofouling and NOM fouling are most prevalent; for industrial process water, calcium carbonate scaling is most common; for wastewater reuse, organic fouling and biofouling dominate. Across all applications, inadequate pretreatment is the root cause in an estimated 60-70% of fouling cases, according to industry surveys.

Q4: Can RO membrane fouling be reversed?

Fouling in its early stages is largely reversible with proper chemical cleaning. Calcium carbonate scale, metal hydroxides, colloidal deposits, and early-stage organic fouling can typically be removed with 80-95% effectiveness. However, barium/strontium sulfate scale, polymerized silica, and advanced biofouling with thick EPS layers are often irreversible, requiring membrane replacement. The key to reversibility is early detection and prompt cleaning — allowing fouling to progress beyond the initial stage significantly reduces cleaning effectiveness.

Q5: How does feedwater temperature affect RO membrane fouling?

Feedwater temperature has a significant and complex impact on fouling behavior: (1) higher temperature (above 35 degrees C) increases the rate of chemical reactions, accelerating scale formation and biofilm growth; (2) lower temperature (below 15 degrees C) increases water viscosity, which raises differential pressure and may concentrate foulants; (3) silica solubility decreases at low temperature, increasing silica scaling risk; and (4) RO membrane flux increases approximately 3% per degree C, meaning temperature fluctuations affect both fouling rate and cleaning effectiveness. The optimal operating range for most RO systems is 20-28 degrees C.

Related Resources and Further Reading

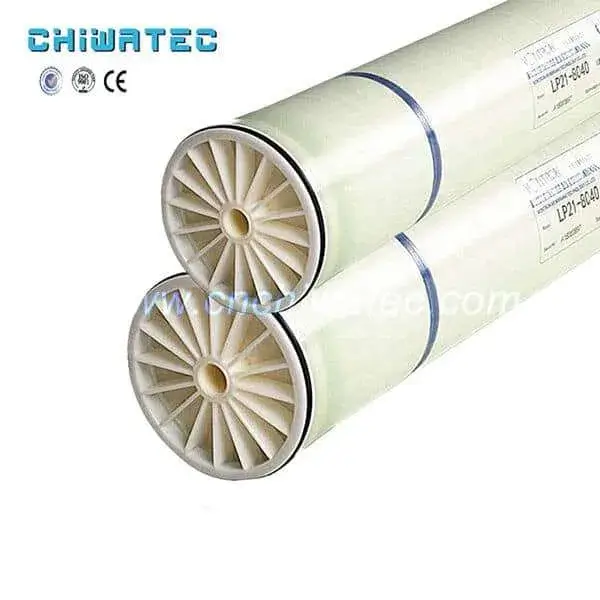

LP21-8040 membrane
