DELTA-10

Feed water source: Tap water, Municipal water, Well Water.
Feed Water TDS: 2000ppm
Pre-treatment: Carbon Filter, Sand Filter, Anti-scalant Dosing System
RO unit: Sediment filter, High pressure pump, RO membrane, Pressure gauge, Flow meter and Pipelines.
CIP system.
Permeate output quality:TDS≤60-100 ppm, WHO direct drinking standard.
Input temperature:4℃~45℃
Salt rejection: 99%
Recovery rate: 70%
Frame material: stainless steel
Power supply: 380V/220V/110V,50/60Hz, 15KW
Certificate: CE certificate, ISO9001

Description

1. Brief introduction

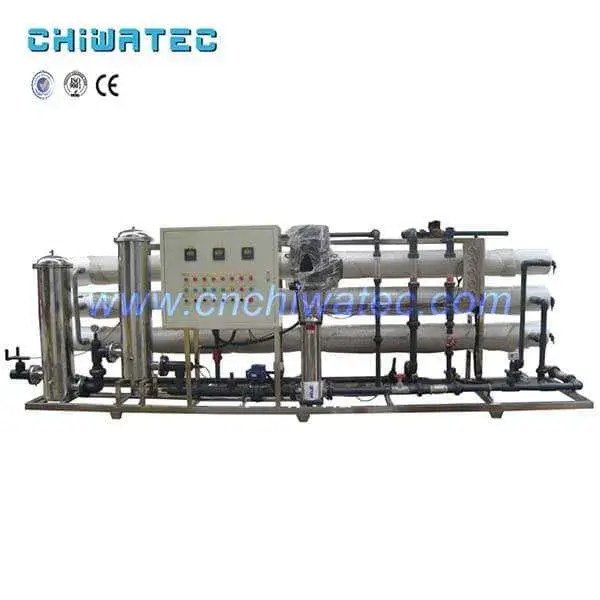

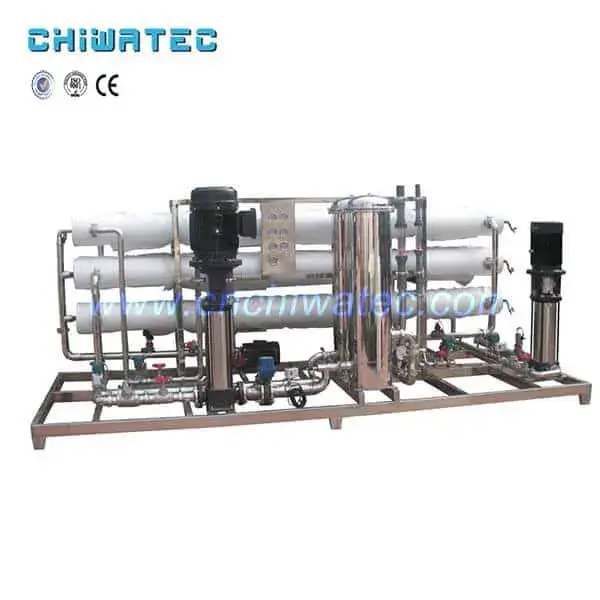

River water purification system for pure water treatment system reverse osmosis machine use CSM RO membrane 8040. production of 10,000LPH potable RO machine. Water treatment systems RO water filtration drinking unit water plant ro- water treatment system high flow water treatment system water treatment system machine complete.
Delta series RO are mainly used in industrial field with large capacity. The range of capacity if above 4T/H, could reach to 100T/H. Its operation is easy and with good quality. The pre-treatment and post-treatment can be optional to the system depending on client requirements.

2. Features of Pure Water Treatment System

  • Large capacity, specially suitable for industries.
  • Lower cost and easy operation.
  • High rejection rate with concentrate recycle system.
  • Cleaning in place system is optional if necessary.

3. Design basis for Pure Water Treatment System

3.1 The raw water is (TDS:≤2000ppm)

  • Permeate output:optional according to the requirement (25℃)
  • Sea water input temperature:4℃~45℃

3.2 Permeate output quality:TDS≤60-100 ppm, WHO direct drinking standard.
3.3 Power supply: 380V/220V/110V,50/60Hz

4.Technical route and flow diagram instructions

The technical route is as following.
Raw tank–> sand filter–> carbon filter–> anti-scalant dosing system –> sediment filter–>high pressure pump–>RO desalination device–>CIP system–> permeate tank
flow chart delta

5. Specification for Pure Water Treatment System:

Model Capacity (LPH) 3rd year operating pressure(PSI) No. Of 8”element 8″membrane vessel Designed recovery Driving motor 50Hz/380V
DELTA-10 10000 200 10 200″*2 70% 15KW

6. Weights & dimensions for water purification system treatment:

Model Approximate unit dimension Approximate shipping dimension
L(mm) W(mm) H(mm) Weight(kg) L(mm) W(mm) H(mm) Weight(kg)
DELTA-10 5500 850 1500 509 5800 1050 1700 549

7. Components for Pure Water Treatment System

Main Components

  • T.F.C.R.O membrane with 99% average salt rejection
  • FRP pressure vessel
  • SS centrifugal pump
  • Coated carbon steel frame
  • Sediment filter
  • Product water flow meter
  • Concentrate regulate valve
  • Pressure gauge
  • Pump exit regulate valve
  • 380V/50HZ power supply

Optional Components

  • 304SS pressure vessel
  • CIP system
  • Concentrate recycle
  • Chemical dosing system
  • 220V/60HZ power supply

8. Our Certification



9. Comments From Customers

Comments From Customers

10. Package and Transportation

11. Finished Project
