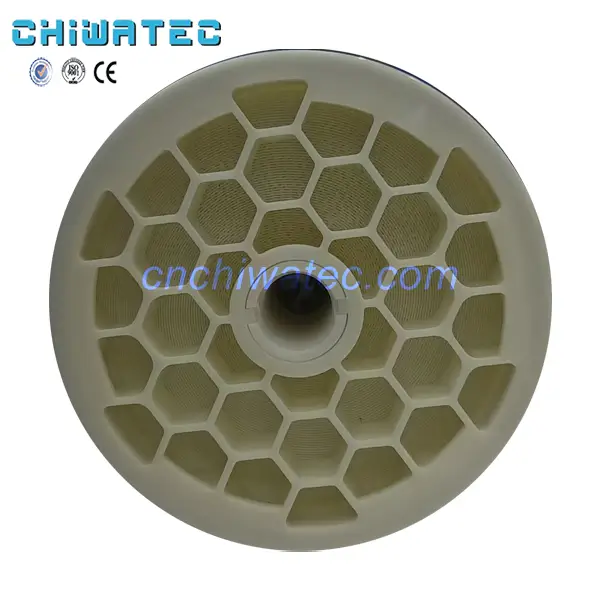

LG SW 400 GR RO Membrane Elements

Product name: LG SW 400 GR Membrana RO
Modelo: SW 400 GR
Salt rejection: 99.85%
Effective membrane area: 37m²
Test pressure: 15.5bar
Capacity: 7500GPD
Membrane type: T.F.C
PH range for continue working: 2-11
Brand Name: LG
Condição: Nova

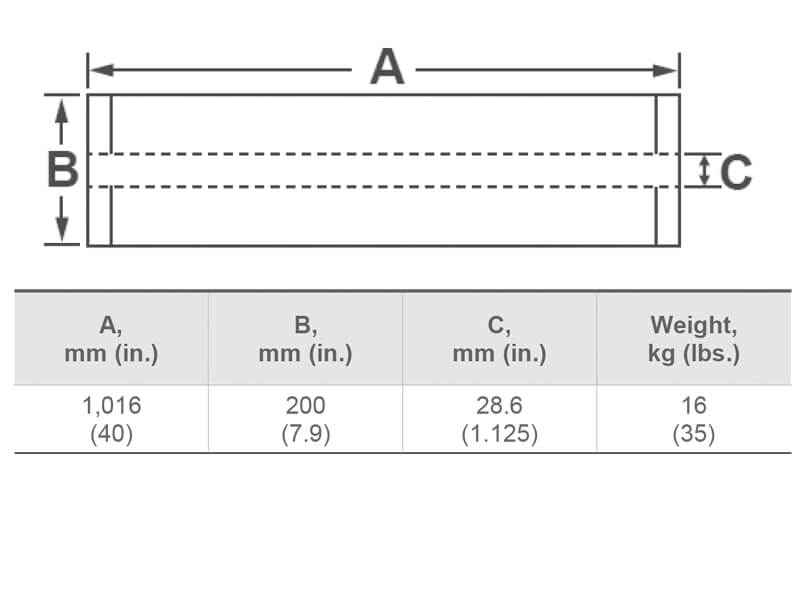

Size: 201*201*1016mm
Weight: 14KG
Material: CARTON
Serviço pós-venda fornecido: suporte técnico de vídeo, instalação em campo, comissionamento e treinamento, serviço de manutenção e reparo em campo, peças de reposição gratuitas, suporte online

Descrição

1. Brief introduction of LG SW 400 GR RO Membrane Elements

LG Chem’s NanoH2O™ seawater RO membranes, incorporated with innovative Thin Film Nanocomposite (TFN) technology, reduce the cost of desalination while delivering superior water quality. Our seawater RO membranes provide industry leading salt rejection and produce 20% more flow than membranes manufactured with conventional technologies. We continue to leverage the technological advantages of our seawater RO membranes to expand our market share, accruing more than 3,000 Million Liter per Day (MLD) projects for both new and replacement market since the establishment.
LG SW GR (Great Rejection) membranes offer a combination of high rejection and low energy requirements to reduce the total cost of desalination; suitable for high salinity seawater applications.

2. Parameter for LG SW 400 GR RO Membrane Elements


Modelo	Size (Diameter)		Active area		Permeate flow rate		Stabilized salt rejection	Data sheets
Modelo	milímetros	polegada	pés²	m²	gpd	m³/d	%	Data sheets
LG BW 4040 R	100	4	85	7.9	2500	9.5	99.6
LG BW 400 R Dura	200	8	400	37	10500	39.7	99.7
LG BW 400 R	200	8	400	37	10500	39.7	99.6
LG BW 400 R G2	200	8	400	37	11500	43.5	99.65
LG BW 400 AFR	200	8	400	37	10500	39.7	99.6
LG SW 400 SR	200	8	400	37	6000	22.7	99.85
LG SW 400 R	200	8	400	37	9000	34.1	99.85
LG SW 400 GR	200	8	400	37	7500	28.4	99.85
