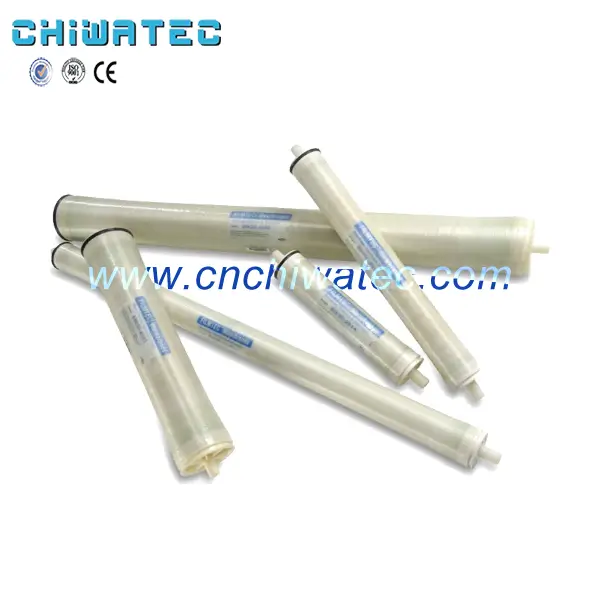

LCHR-4040 RO Membrane Elements

Product name: LCLE-4040 Dupont RO Membrane Elements
Modelo: LCLE-4040
Salt rejection: 99.7%
Effective membrane area: 7.2m²
Test pressure: 15.5bar
Capacity: 2900GPD
Membrane type: T.F.C
PH range for continue working: 2-11
Brand Name: Dupont FILMTEC
Condição: Nova
Size: 100*100*1000mm
Weight: 4KG
Material: CARTON
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops

Descrição

1. Brief introduction of LCHR-4040 RO Membrane Elements

DOW FILMTEC™ LC 4040 product range are available to meet a wide variety of customer needs in commercial applications, from producing high purity water to delivering low total system costs. Dow’s fully automated element production enables the most consistent products in the industry that minimizes the total cost of ownership of water treatment systems.

LC HR-4040 produces high quality water with our state of the art RO membrane.
LC LE-4040 delivers high quality water at low pressure at harsh water conditions,

using Dow’s innovative, proprietary technology for low energy applications.

2. Parameter and test condition for LCHR-4040 RO Membrane Elements


Modelo	Size (Diameter)		Active area		Permeate flow rate		Stabilized salt rejection	Data sheets
Modelo	milímetros	polegada	pés²	m²	gpd	m³/d	%	Data sheets
BW30 PRO-4040	100	4	78	7.2	2600	9.8	99.7
LCLE-4040	100	4	78	7.2	2500	9.5	99.2
LCHR-4040	100	4	78	7.2	2900	11	99.7
HSRO-4040-FF	100	4	90	8.4	1900	7.2	99.5
BW30 PRO-400	200	8	400	37	11000	42	99.6
BW30-400	200	8	400	37	10500	40	99.5
BW30-400IG	200	8	400	37	10500	40	99.5

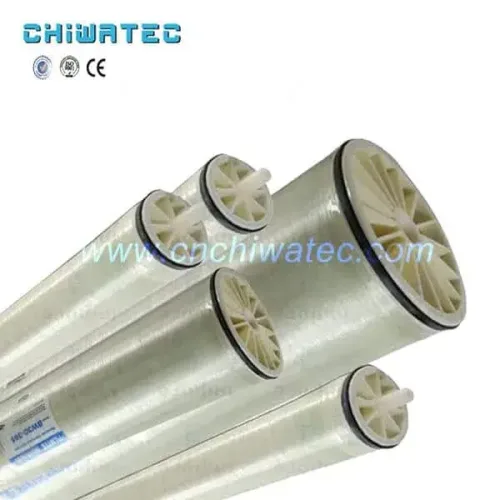

BW30-365	200	8	365	34	9500	36	99.5
BW30HR-440i	200	8	440	41	13650	48	99.7
BW30FR-365	200	8	365	34	9500	36	99.5
BW30FR-400	200	8	400	37	10500	40	99.5
HSRO-390-FF	200	8	390	36	9000	34	99.5
SW30HR-380	200	8	380	35	6000	23	99.7

Taxa de fluxo do permeado e rejeição de sal com base nas seguintes condições de teste: 2000 ppm de NaCl, 225 psig (15,5 bar), 77°F (25°C) e recuperação de 15%. As taxas de fluxo de permeado para elementos individuais podem variar +/-20%. Para fins de melhoria, as especificações podem ser atualizadas periodicamente.
